Car & Home Dual-Purpose Oxygen Concentrator with Nebulization

Designed for flexible oxygen support at home and on the road, this compact oxygen concentrator combines oxygen delivery, nebulization, AC/DC power compatibility, and portable design in one easy-to-use unit.

With a compact 13.7 × 26 × 29 cm body and an approximate weight of 3.5 kg, it can be used at home, powered from a compatible vehicle outlet, or paired with an optional lithium battery for outdoor and travel use.

≥90% Oxygen Concentration at ≤1 L/min
Built-In Nebulization Function
AC 100–240V / DC 12V Compatible
Vehicle Power Supply Supported
Timer & Remote Control Functions
Compact Size: Approx. 13.7 × 26 × 29 cm
Lightweight Design: Approx. 3.5 kg
Optional Lithium Battery for Portable Use

Oxygen & Nebulization in One Device

The built-in nebulization outlet adds extra versatility to the concentrator, combining oxygen supplementation and nebulization functions in one compact unit for convenient home use.

Flexible Home & Vehicle Power

Use the concentrator with AC power at home or connect it to a compatible 12V vehicle power source while traveling. An optional lithium battery can also be added when portable operation away from a fixed power source is needed.

Compact and Easy to Carry

At approximately 13.7 × 26 × 29 cm and 3.5 kg, the unit is easier to move and store than many larger oxygen concentrators. A dedicated shoulder bag provides an additional carrying option for travel.

Easy Everyday Operation

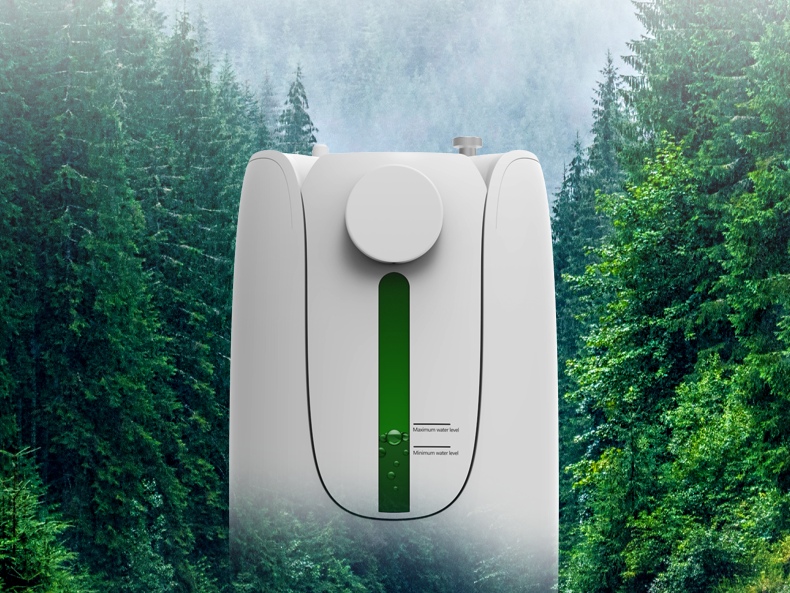

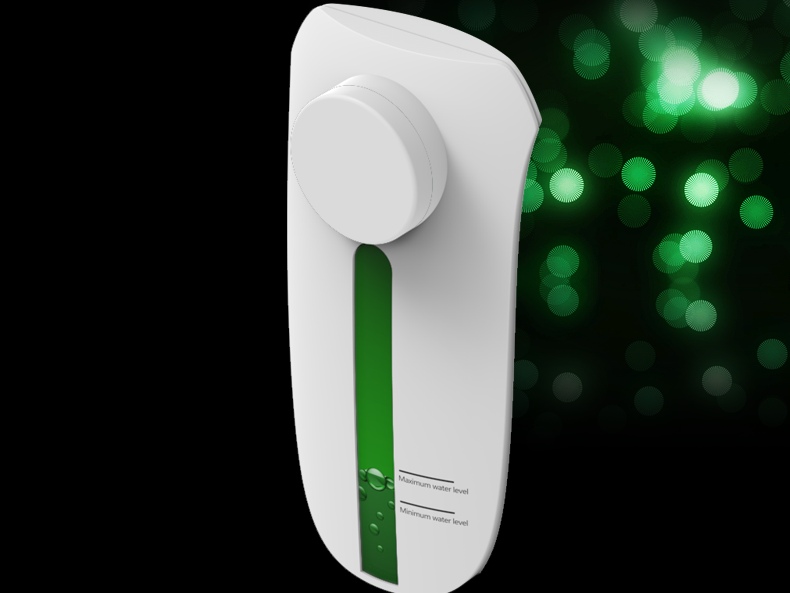

The wide digital display shows key operating information, while timer, flow adjustment, voice, and remote-control functions help make daily operation more convenient. The integrated humidification cup is designed for easy removal and cleaning.

Where You Can Use It

Home Use

Compact enough for placement beside a bed, sofa, or table for everyday indoor use.

In-Car Use

Supports compatible vehicle power, making it suitable for road trips and longer journeys.

Outdoor & Travel Use

Pair with the optional lithium battery and shoulder bag when portable operation is required.

High-Altitude Travel

Portable high‑altitude travel oxygen support. Performance varies with environment & operating conditions.

Product Specifications

Specification	Details
Product Model	DZ-1BCW
Product Type	Car & Home Oxygen Concentrator
Oxygen Concentration	≥90% (V/V) at ≤1 L/min
Power Input	AC 100–240V
DC Output	DC 12V
Input Power	100VA
Operating Temperature	0°C–40°C
Nebulization Function	Yes
Timer Function	Yes
Remote Control	Supported
Humidification	Integrated Humidification Cup
Vehicle Power Supply	Supported
Lithium Battery	Optional / Sold Separately
Product Size	Approx. 13.7 × 26 × 29 cm
Product Weight	Approx. 3.5 kg
Carrying Option	Handle / Shoulder Bag
Recommended Use	Home / Car / Travel / Outdoor

Before You Use

Place the concentrator on a stable surface with enough space around the air inlet and cooling vents.
Keep the unit away from smoking, open flames, sparks, and other ignition sources.
Check the oxygen tube, humidification cup, filter, and power connections before operation.
Use the supplied or compatible AC/DC power accessories.
When using vehicle power, make sure the vehicle power source meets the product requirements.
The optional lithium battery should be fully charged before outdoor or travel use.
Keep the humidification cup within the marked minimum and maximum water levels.
Use the nebulization function only as instructed in the user manual and follow professional guidance for any medication used with nebulization.
If oxygen supplementation is medically required, follow the oxygen setting recommended by a qualified healthcare professional.
Stop use and check the manual or contact support if abnormal alarms, overheating, unusual noise, or interrupted oxygen output occurs.
